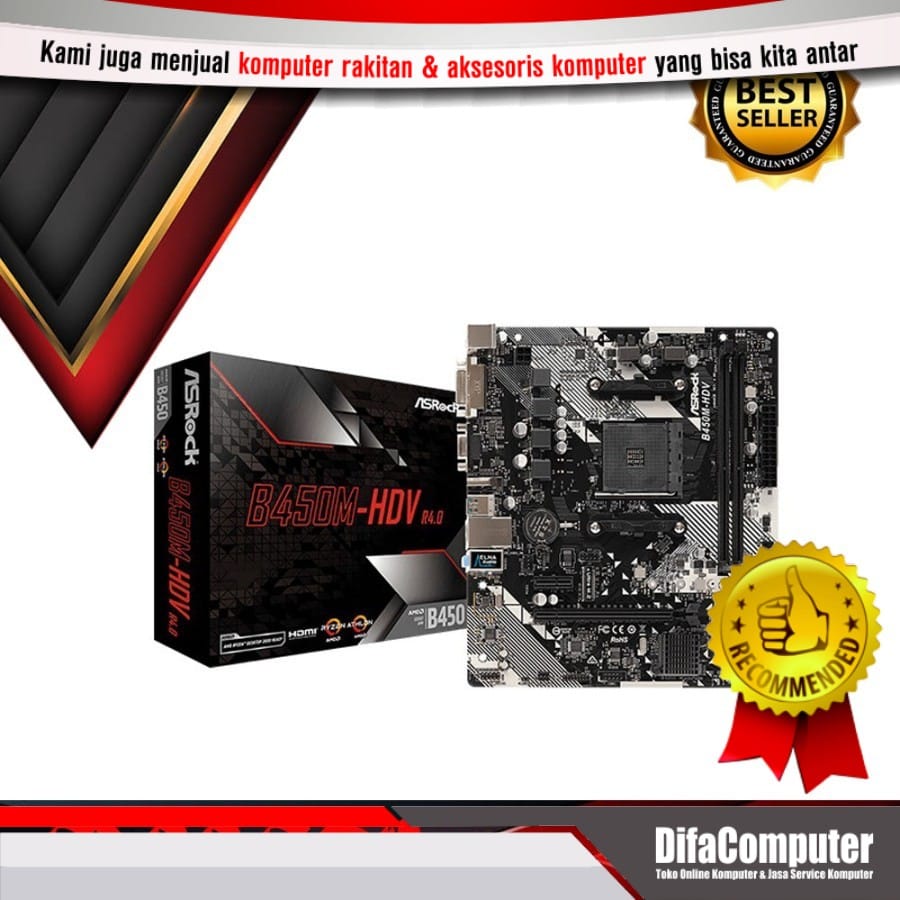

Motherboard ASRock B450M-HDV (AM4, AMD Promontory B450, DDR4, USB3.1)

Product Name : ASRock B450M-HDV (AM4, AMD Promontory B450, DDR4, USB3.1, SATA3)

Brand : ASRock

Model : B450M-HDV

CPU Type : AMD AM4 Socket

Chipset : B450

Memory Standard : 2 x DDR4 DIMM, Supports DDR4 3200+ (OC)

Maximum Memory Supported : 32GB Dual Channel

Expansion Slots : 1 PCIe 3.0 x16, 1 PCIe 2.0 x1

SATA Port : 4 x SATA3 6.0 Gb/s

M.2 : 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

Onboard Video Chipset : Integrated AMD Radeon™ Graphics (APU Only)

Multi-GPU support : –

Audio Chipset : Realtek ALC887

LAN Chipset : Realtek RTL8111H

Rear Panel Ports : PS/2 Mouse/Keyboard Port, D-Sub Port, DVI-D Port, HDMI Port, 2 x USB 2.0 Ports, 4 x USB 3.1 Gen1 Ports, RJ-45 LAN Port with LED, HD Audio Jacks: Line in / Front Speaker / Microphone

Form Factor : Micro ATX (23.1 cm x 20.6 cm)
