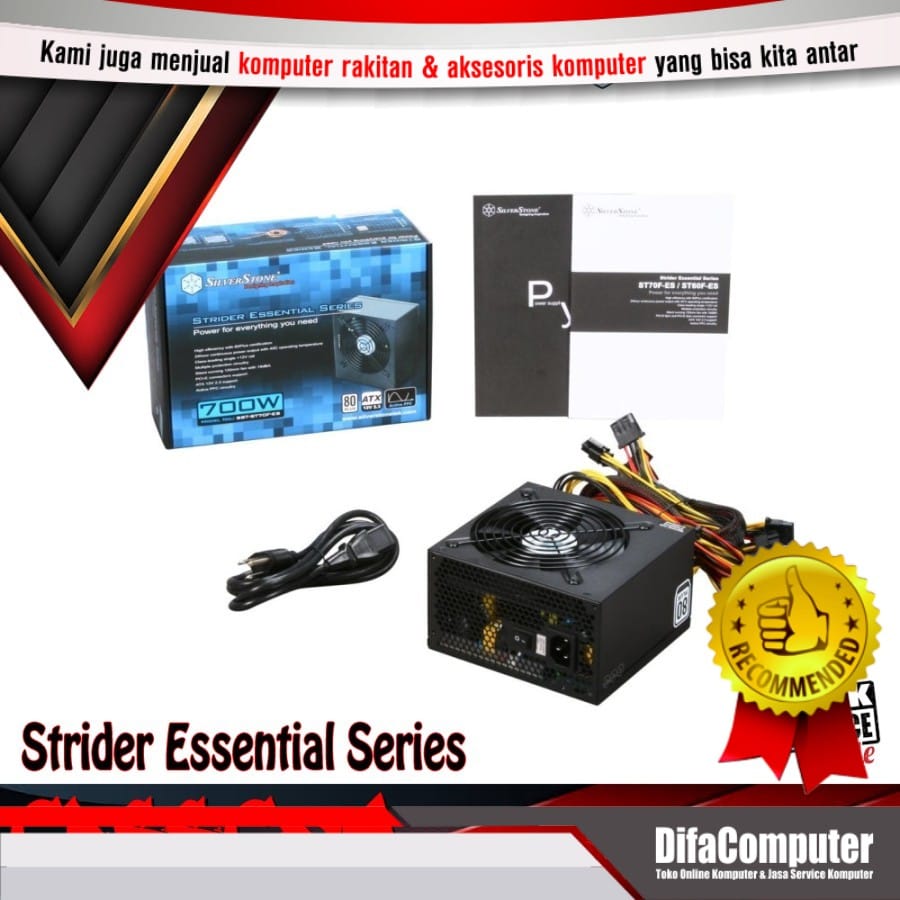

SILVERSTONE PSU ST700F-ES GM 700W 80+ PLUS POWER SUPPLY SST-ST70F-ES

Model
Brand SilverStone
Series Strider Essential series
Model ST70F-ES

Details
Type ATX12V / EPS12V
Maximum Power 700W
Fans 1 x 120mm Fan
PFC Active
Main Connector 20+4Pin
+12V Rails Single
PCI-Express Connector 3 x 6-Pin, 1 x 6+2-Pin
SATA Power Connector 6
SLI SLI Ready
Haswell Support Yes
CrossFire CrossFire Ready
Modular No
Efficiency >80% at 20% – 100% loading
Energy-Efficient 80 PLUS Certified
Over Voltage Protection Yes
Input Voltage 90 V – 264 V
Input Frequency Range 47Hz – 63Hz
Output +3.3V@25A, +5V@25A, +12V1@46A, +5VSB@2.5A, -12V@0.3A
MTBF 100,000 hours at 25°C, full load
Dimensions 5.91″ x 3.39″ x 5.51″ (W x H x D)
Weight 4.41 lbs.

Features
Connectors 1 x Main connector (20+4Pin)
1 x 4+4 Pin EPS 12V CPU
3 x Peripheral
6 x SATA
1 x Floppy
4 x PCI-E

Features
High efficiency with 80 PLUS certification
Support ATX 12V 2.3
700W 24hour continuous power output with 40°C operating temperature
Noise Level: 18dBA – 36dBA
Over current protection, Over power protection, Over voltage protection, Under voltage protection, Over temperature protection, Short circuit protection
