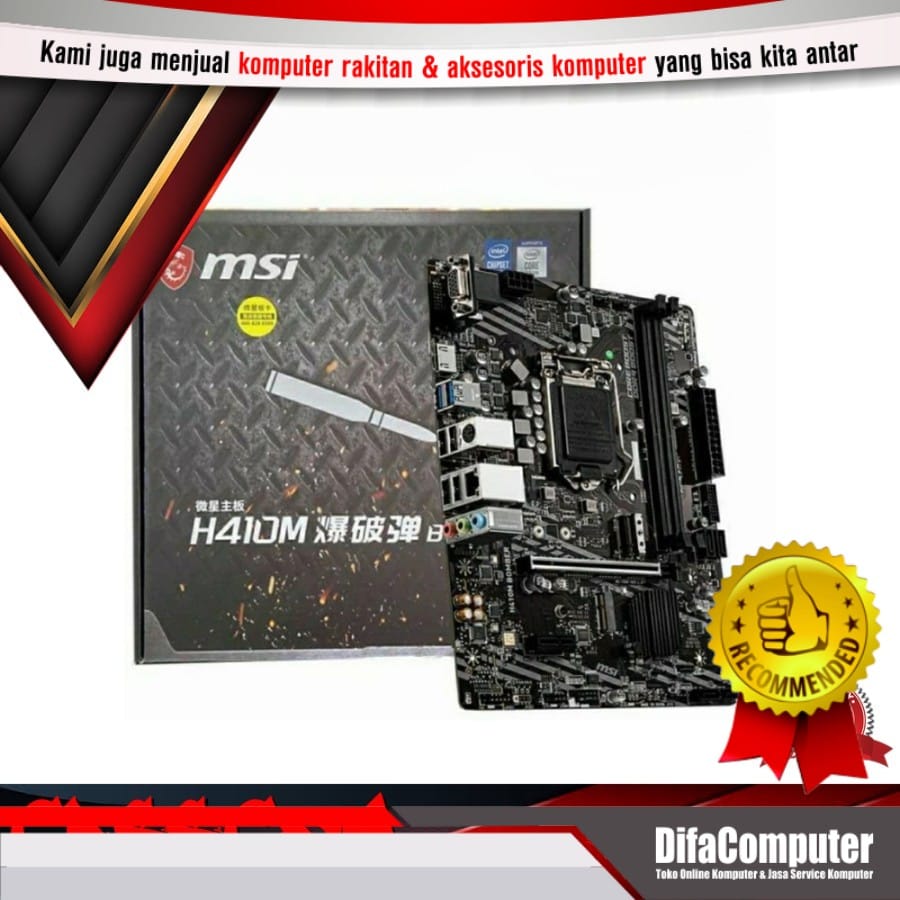

Motherboard MSI H410M BOMBER Intel LGA1200

GARANSI RESMI WPG

CHIPSET: Intel® H410 chipset

MEMORY :-
2x DDR4 memory slots, support up to 64GB1
Intel® Core™ i7/ i9
Supports up to DDR4 2933 MHz
Intel® Core™ i5 and below
*Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

EXPANSION SLOT :-
1x PCIe 3.0 x16 slot
2x PCIe 3.0 x1 slots
1x M.2 slot with E Key for WiFi module only

ONBOARD GRAPHICS :-
1x DVI-D port, supports a maximum resolution of 1920×1200 @60Hz
1x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz
* Maximum shared memory is 1GB

AUDIO :-
Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio

LAN :-
1x Realtek® 8111H Gigabit LAN controller

STORAGE :-
Intel® H410 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M)
* Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices1

USB :-
Intel® H410 Chipset
* 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
* 6x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connectors)

AUDIO :-
Realtek® ALC892/ALC897 Codec
*7.1-Channel High Definition Audio

LAN :-
1x Intel® I219V Gigabit LAN controller

FORM FACTOR :-
Miro-ATX Form Factor
9.3 in. x 7.6 in. (23.6 cm x 19.2 cm)

BACK PANEL CONNECTORS :-
* USB 2.0 Type-A ports
* LAN port
* PS/2 keyboard/ mouse combo port
* VGA port
* HDMI port
* USB 3.2 Gen1 5Gbps Type-A ports
* USB 3.2 Gen1 5Gbps Type-A ports
* Audio jacks
