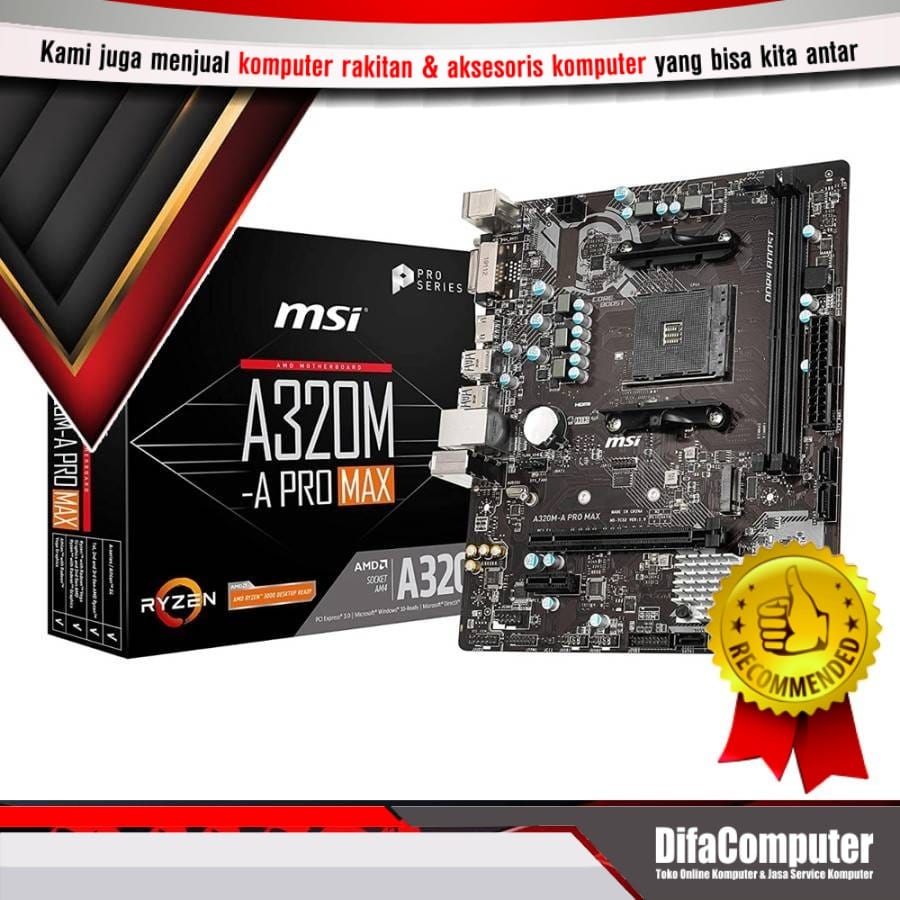

Motherboard MSI A320M-A Pro MAX (AM4, AMD Promontory A320, DDR4, USB3

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1
Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Supports DDR4 Memory, up to 3200 (OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
Audio Boost: Reward your ears with studio grade sound quality.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

SOCKET : AM4
CPU (MAX SUPPORT) : RYZEN
CHIPSET : AMD® A320 Chipset
DDR4 MEMORY :
1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE)
MEMORY CHANNEL : Dual
DIMM SLOTS : 2
MAX MEMORY (GB) : 32
PCI-E X16 : 1
PCI-E GEN : Gen3
PCI-E X1 : 1
SATAIII : 4
M.2 SLOT : 1
RAID : 0/1/10
TPM (HEADER) : 1
LAN : 1x Realtek® 8111H
USB 3.2 PORTS (FRONT) : 2(Gen1, Type A)
USB 3.2 PORTS (REAR) : 4(Gen1, Type A)
USB 2.0 PORTS (FRONT) : 4
USB 2.0 PORTS (REAR) : 2
SERIAL PORTS(FRONT) : 1
AUDIO PORTS (REAR) : Realtek® ALC892 Codec
DVI-D : 1
HDMI : 1
DIRECTX : 12
FORM FACTOR : m-ATX
OPERATING SYSTEM :
Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Garansi Resmi 3 Tahun.
